Hidden Secret Lock Wooden Drawer, Cupboard or Wardrobe - App Control

Protect your valuables − no one will know

Stop housemates and family 👀 snooping 👀 with this secret lock.

Turn any wooden drawer, wardrobe, locker or cupboard into a hidden home safe.

Two versions

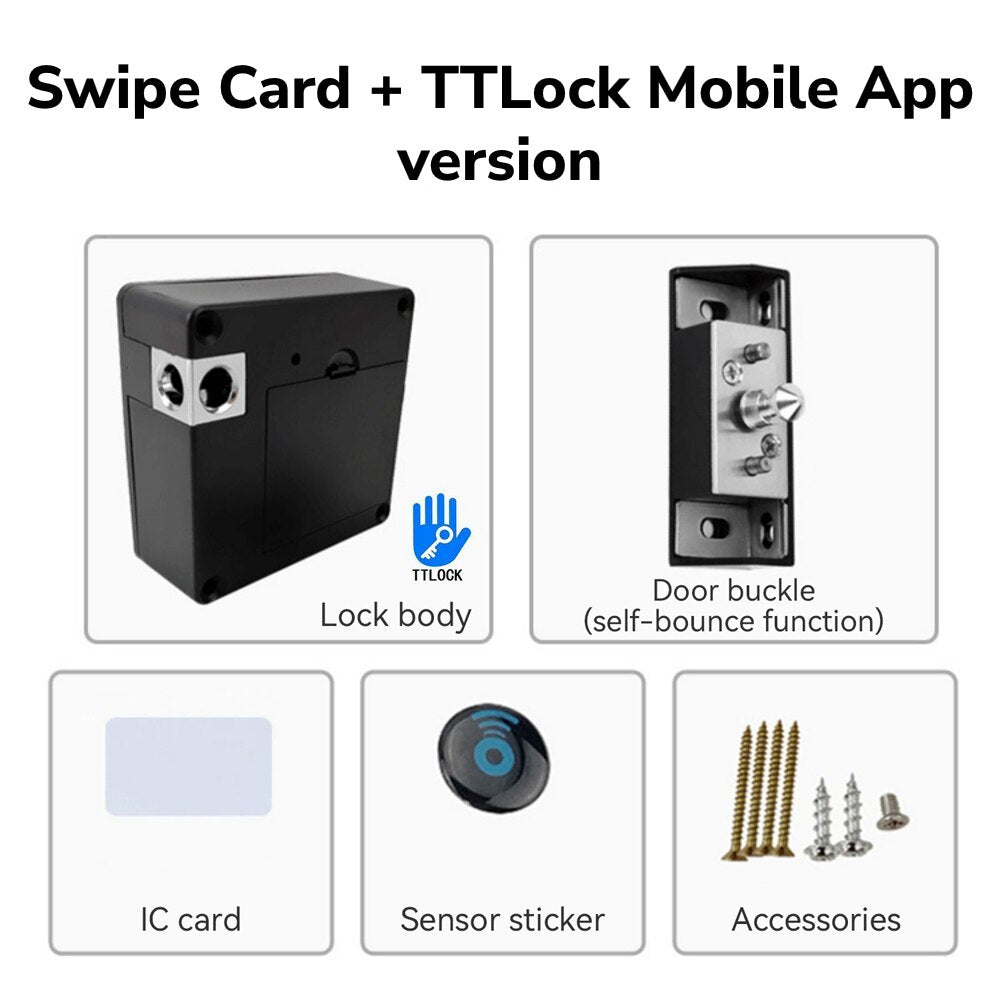

Version 1: Swipe Card + TTLock Mobile App Lock

Works with the Bluetooth mobile phone TTLock App AND/OR supplied ID Swipe Card. Bonus: You also get two FREE keychain fobs.

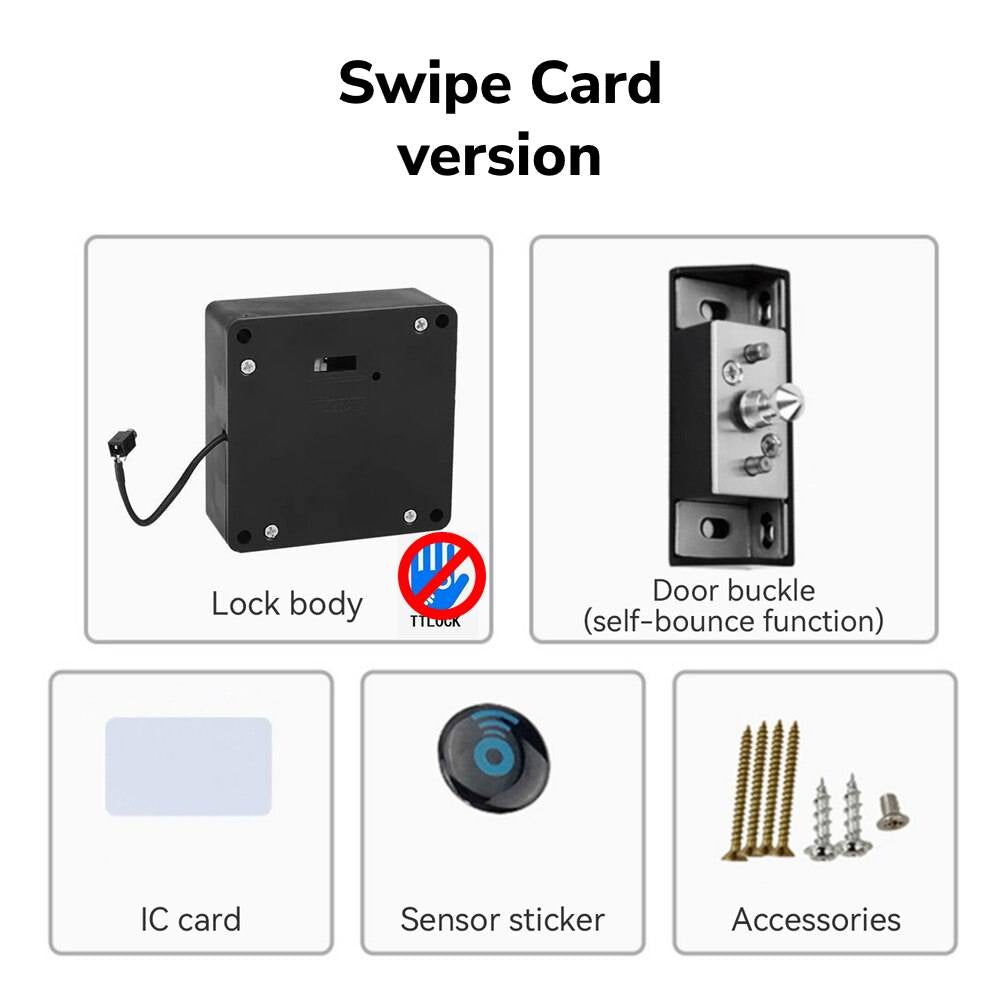

Version 2: Swipe Card Lock

Works ONLY with supplied ID Swipe Card. Bonus: You also get two FREE keychain fobs.

Stealth security

• Solid stainless-steel 8.5mm deadbolt latch and fire-proof ABS lock body, durable and rust-proof.
• Powered by 4 x AA batteries, lasting more than 12 months.
• Completely concealed.


Protect valuables

Hide alcohol, jewellery, passports, wills, legal papers and other important documents - any items you need to keep from prying eyes.

How it works

Both versions are fully manageable and programmable. You can easily reset, add additional - or delete - ID swipe cards.

Version 1: Swipe Card + TTLock Mobile App

• Download from your iOS or Android store the TTLock App.
• Pair the lock with the app and follow the easy steps to use.
• Full step-by-step instructions supplied.
• App features include:
• Battery monitoring
• Unlocking alerts
• Unlocking records monitoring
• Share limited time access (for example, give someone access for one hour only)
• Share specific period cycle access (for example, give someone access daily between 8am and 9am)
• Share one-time only access
• Share permanent access/revoke access
• Pair additional ID cards or fob keys.

Version 2: Swipe Card

• Simply swipe the supplied ID Card to unlock/lock.
• To pair or reset the ID Card (or add extra cards/fobs), press the reset button on the rear of the lock body, then tap the card(s) against the lock body to register.

Specifications

Material: Stainless steel and fire-proof ABS plastic
Power supply: 4 x AA batteries (not included)
Low-battery reminder: Long beep alarm will sound on low battery (< 10 per cent), reminding you to re-charge (or replace) batteries.
No-power protection: Unlocks automatically when low battery.
Lock body dimensions: 7.5x7.5x3.0cm/3.0x3.0x1.2in
Door catch dimensions: 7x3.6x2.5cm/2.8x1.4x1.0in
Swipe Identification Card / Induction Card size: 8.5x5.5cm/3.3x2.2in
Sensing distance: 40-60mm.

What you get

• 1 x Lock Kit: mortise (body) and door catch (batteries NOT included because of shipping/postal restrictions)
• 1 x ID Swipe Card and two FREE key fobs.

• 1 x Sensor Sticker (thumbnail-sized, optional to place it on the outside of the cupboard as a lock/unlock guide, or leave off for full concealment)
• 1 x Installation screws/accessories

FAQs

What smart phone app does it use?
Download from your iOS or Android store the popular TTLock App (Tongtong Lock App).
The app's features include:

• Battery monitoring
• Unlocking alerts
• Unlocking records monitoring
• Share limited time access (for example, give someone access for one hour only)
• Share specific period cycle access (for example, give someone access daily between 8am and 9am)
• Share one-time only access
• Share permanent access/revoke access
• Pair additional ID cards or fob keys.

What happens if the batteries run out?
The lock opens itself when the battery runs critically low to protect you being locked out.

You will hear a long beeping reminder when the batteries are getting low.

The lock will continue to work up to 50 more times before it completely dies.

Batteries should last more than a year, even two years, with regular use.

The Smart Phone App Lock version alerts you via a notification when the battery is low.

Can it be used on all wooden cabinetry?

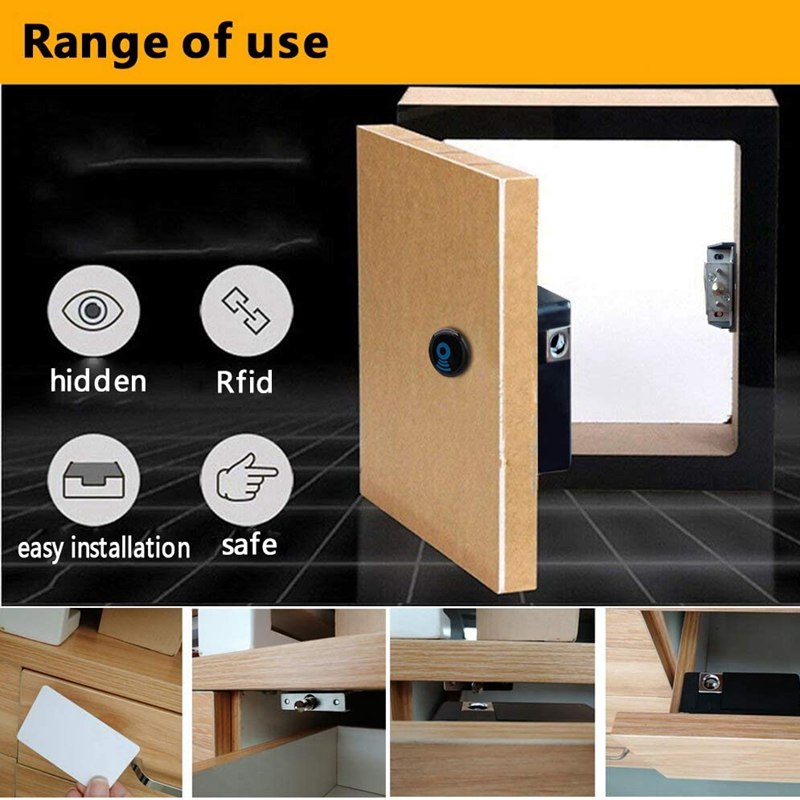

It suits most wooden drawers and cupboards with lapboards up to 30mm thick. Even works on double-door cabinets, see image below.

You can install it on thicker and thinner lapboards using packing or shims.

It won't work on drawers with baffles or double-boards.

Can it be used on steel doors?
No, because metal blocks RFID and Bluetooth frequencies. This lock only works on wooden doors.

Can I add extra ID Swipe cards?
Yes, the lock is fully programmable. You can DIY easily reset, add additional, or delete ID Swipe cards. You can use up to 50 cards! You can even pair and use RFID fobs or wrist bands.

What's the Sensor Sticker?
Place the thumbnail-sized sticker on the outside of the door to show where to tap the ID card (or mobile phone if using the TTLock App). Using the sticker is optional.

Why is there a power cable on the lock body?
Using the cable is optional: you can connect a power bank for super-long use, connect to an external power source (mains wall socket via a power adapter), or charge the batteries if using re-chargeable batteries.
